SPECIFICATIONS

Applicable Lights: PWM DIMMER WW/CW RGB RGBW RGBCCT LED Strips

Brand Name: DOMRAEM

Certification: ce,EMC,FCC,LVD,ROHS

Choice: yes

Compatible with: ZIGBEE3.0 Hubs (Hu*e/Echo Plus etc.)

Connection Mode: ZIGBEE

Controled Method: ZIGBEE3.0 HUB APP

Features: Voice APP control, remote controllei

High-concerned chemical: none

Is Smart Device: Yes

Item Type: RGB controler

Material: ABS plastic

Max. Load Power: 480W

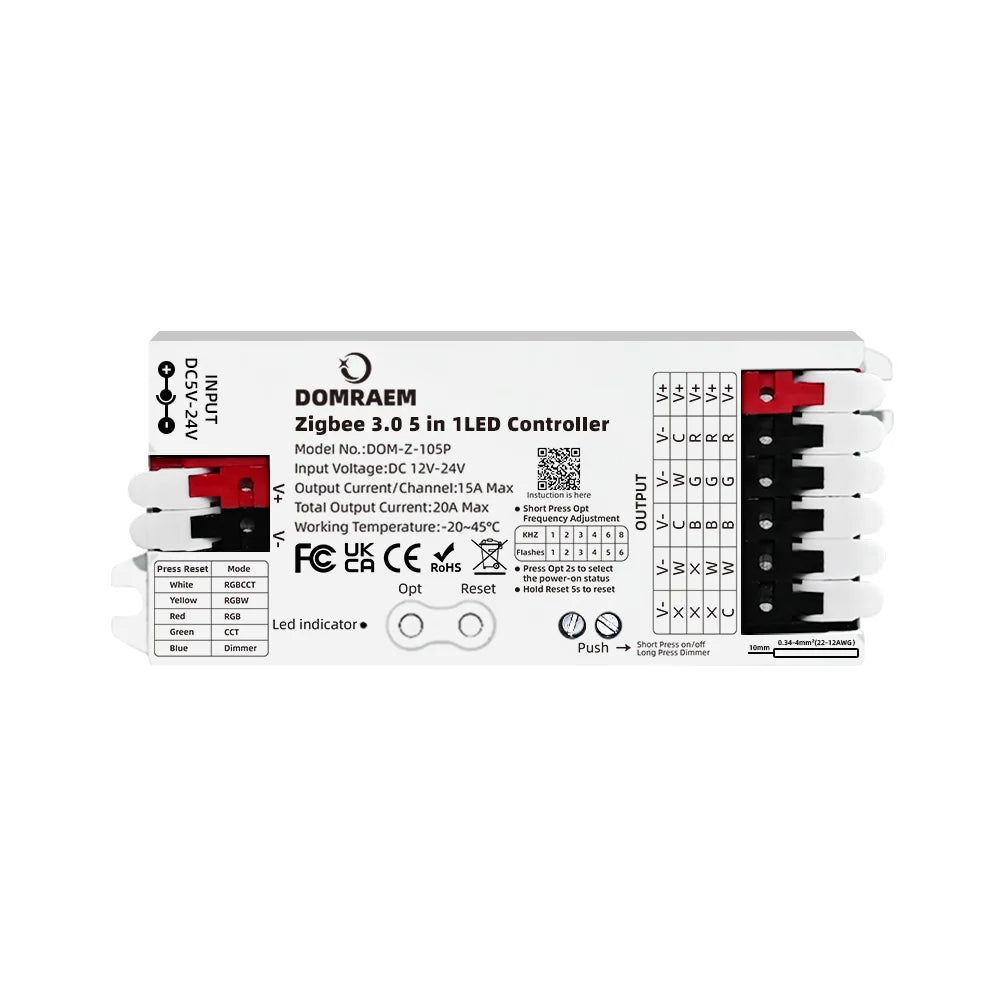

Model Number: DOM-Z-105P

Origin: Mainland China

Oscillation frequency: 50-60Hz

Power Source: DC

Product Name: ZIGBEE3.0 Strip Light Controller

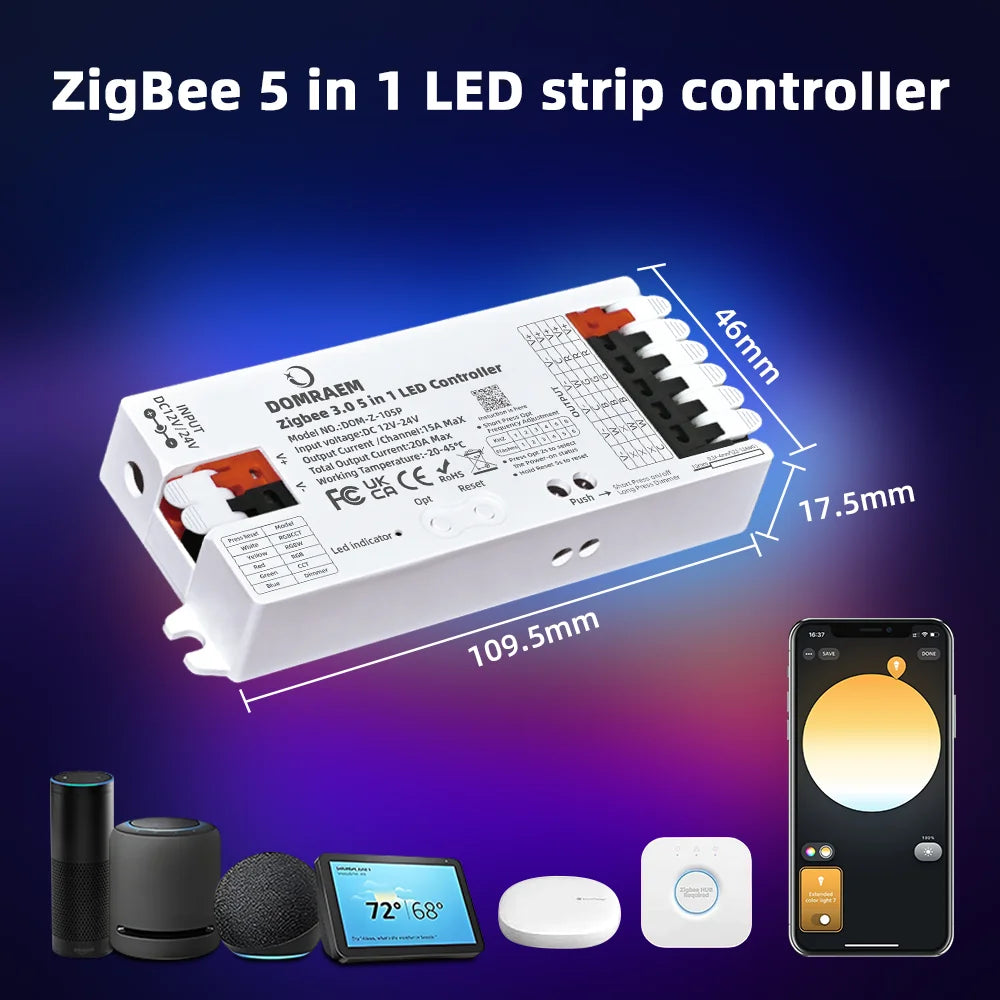

Product Size: 109.5X46X17.5mm

Remote Distance: 30M

Voltage: 12-24v

Warranty: 2years

Wattage: 480W

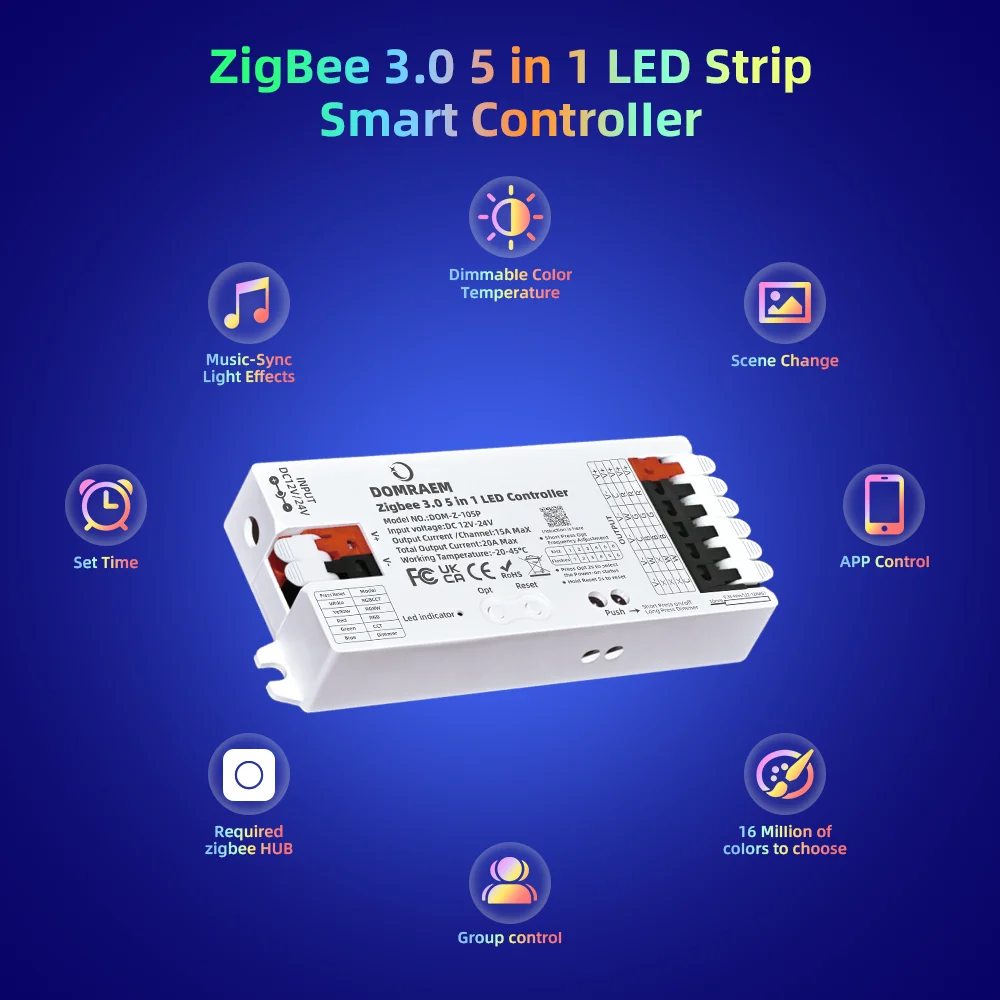

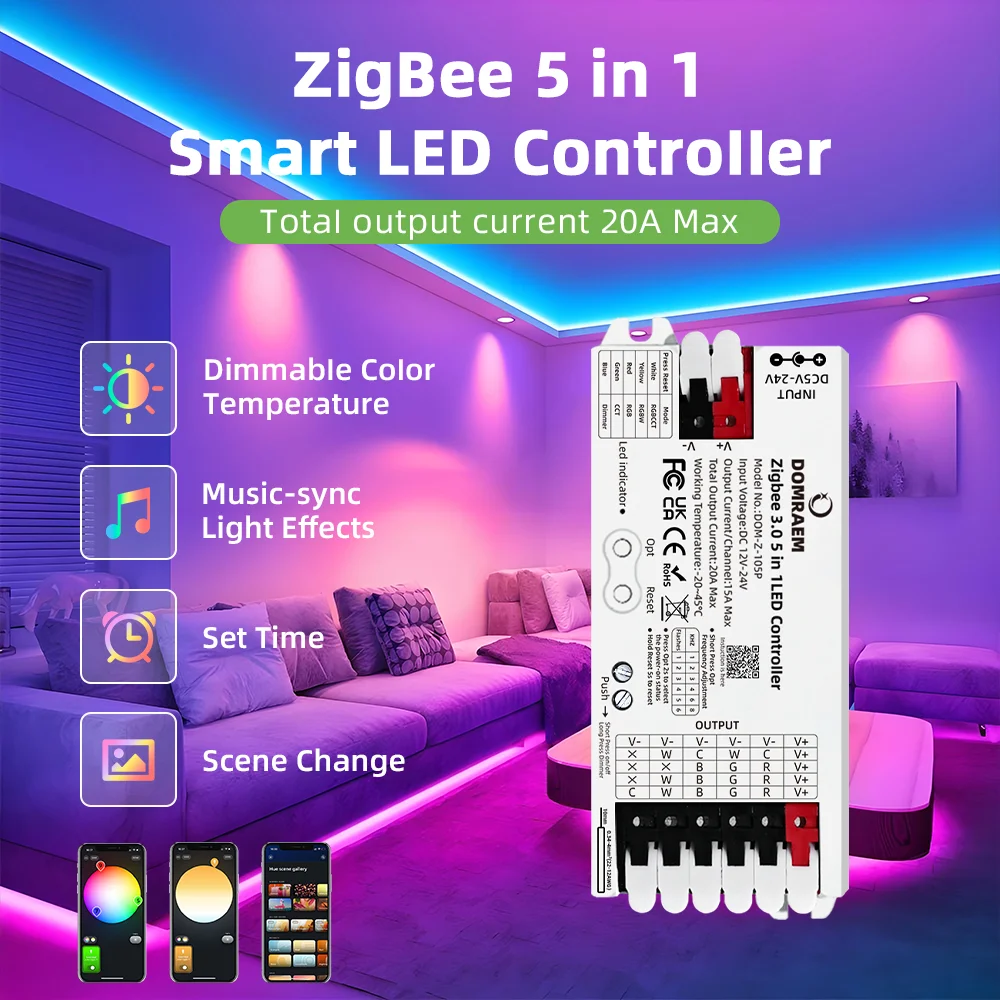

✨ DOMRAEM Zigbee 3.0 5-in-1 PWM Smart LED Controller ✨

🌈Model: DOM-Z-105P

✅ Supports standard PWM LED strips: Single Color, CCT(WW/CW), RGB, RGBW, RGBCCT

❌ Does NOT work with addressable digital pixel strips with IC, including WS2811, WS2812B, WS2814, WS2815, SK6812

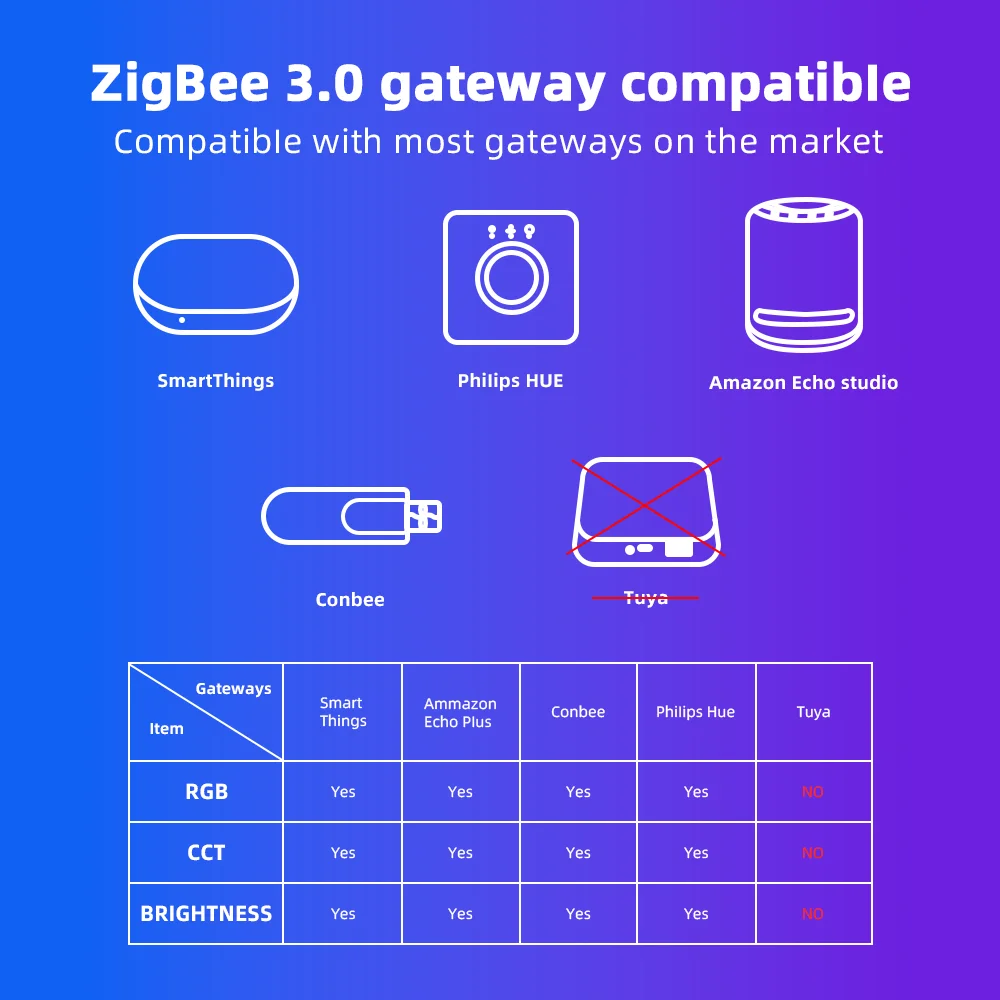

💰Core Protocol Compatibility

• Adopts Zigbee 3.0 protocol for stable connection

• Compatible: HU*E/SmartThings/Amazon Echo Plus etc.

• Special support for Zigbee2MQTT gateway (HomeAssistant compatible)

⚡Professional Electrical Performance

• Wide voltage input: DC12-24V auto-adaptation

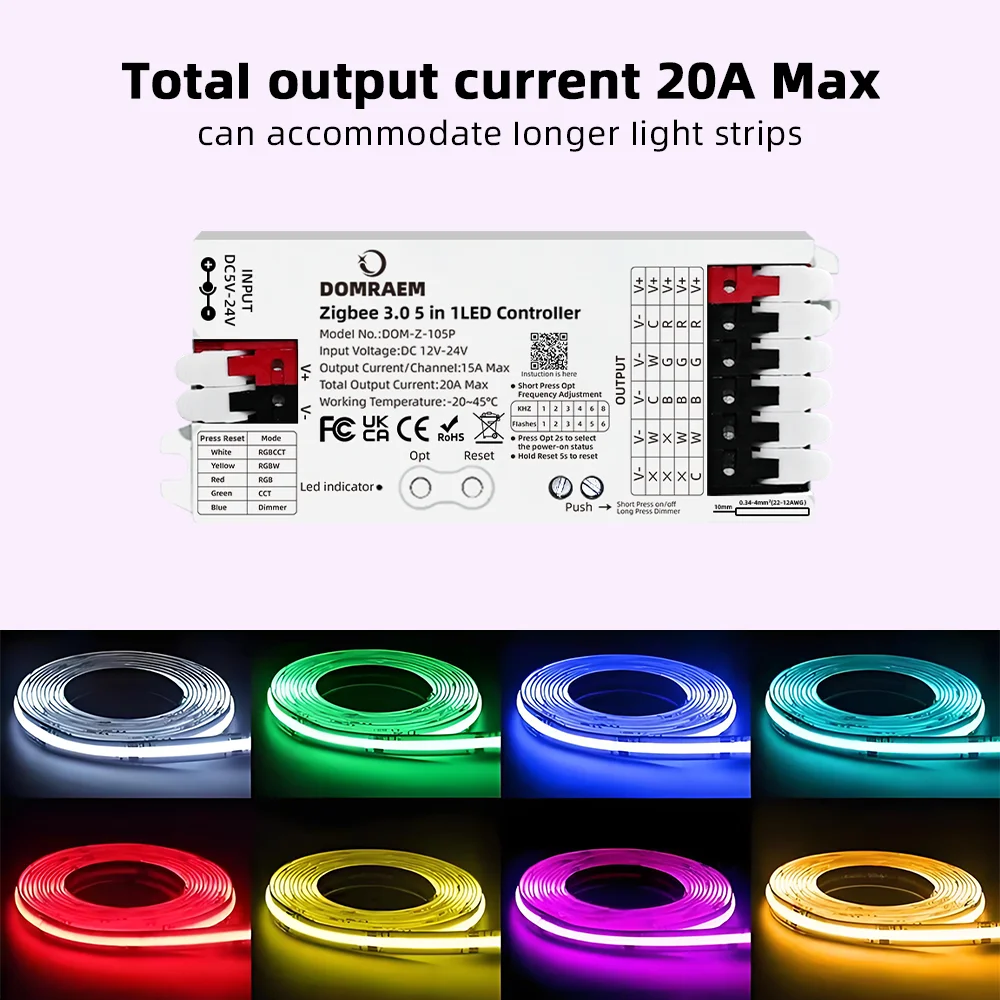

• High-power drive: 15A per channel / 20A total current

• Easily drives 10-20m LED strips (commercial-grade capacity)

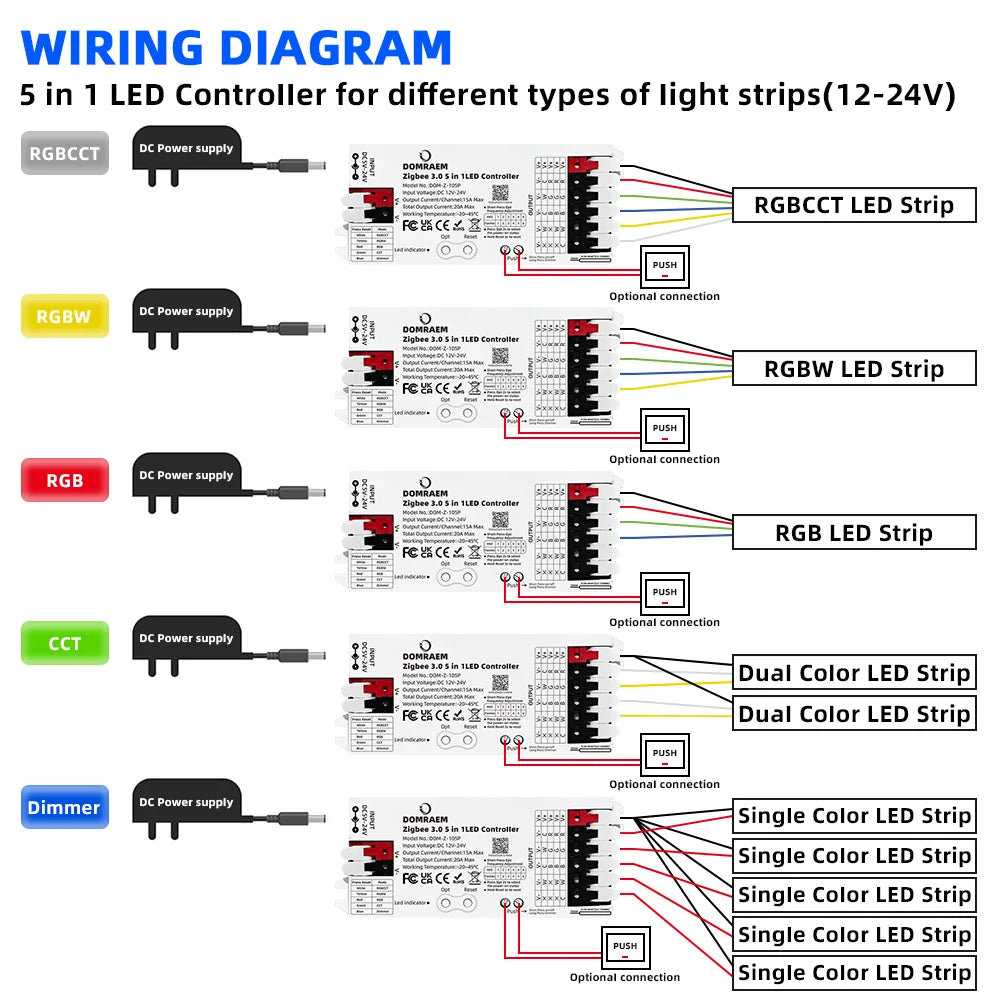

🌈Full LED Strip Support

• Professional PWM dimming technology supports:
  ✓ Dual-color WW/CW strips
  ✓ RGB full-color strips
  ✓ RGBW 4-in-1 strips
  ✓ RGBCCT full-color + tunable strips

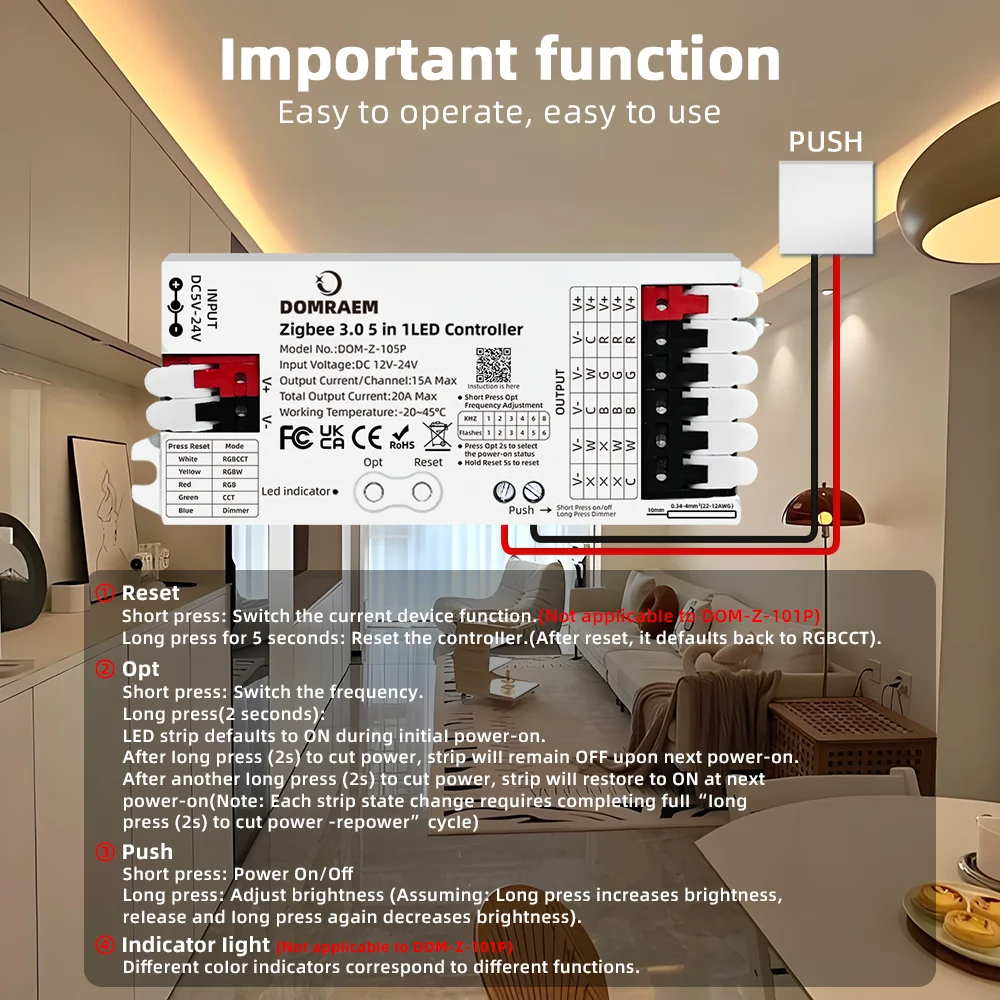

🔄Smart Reset Function

• Hold RESET for 5s to clear all pairing data

• 5 quick power cycles for factory reset

• Automatically reverts to RGBCCT mode after reset

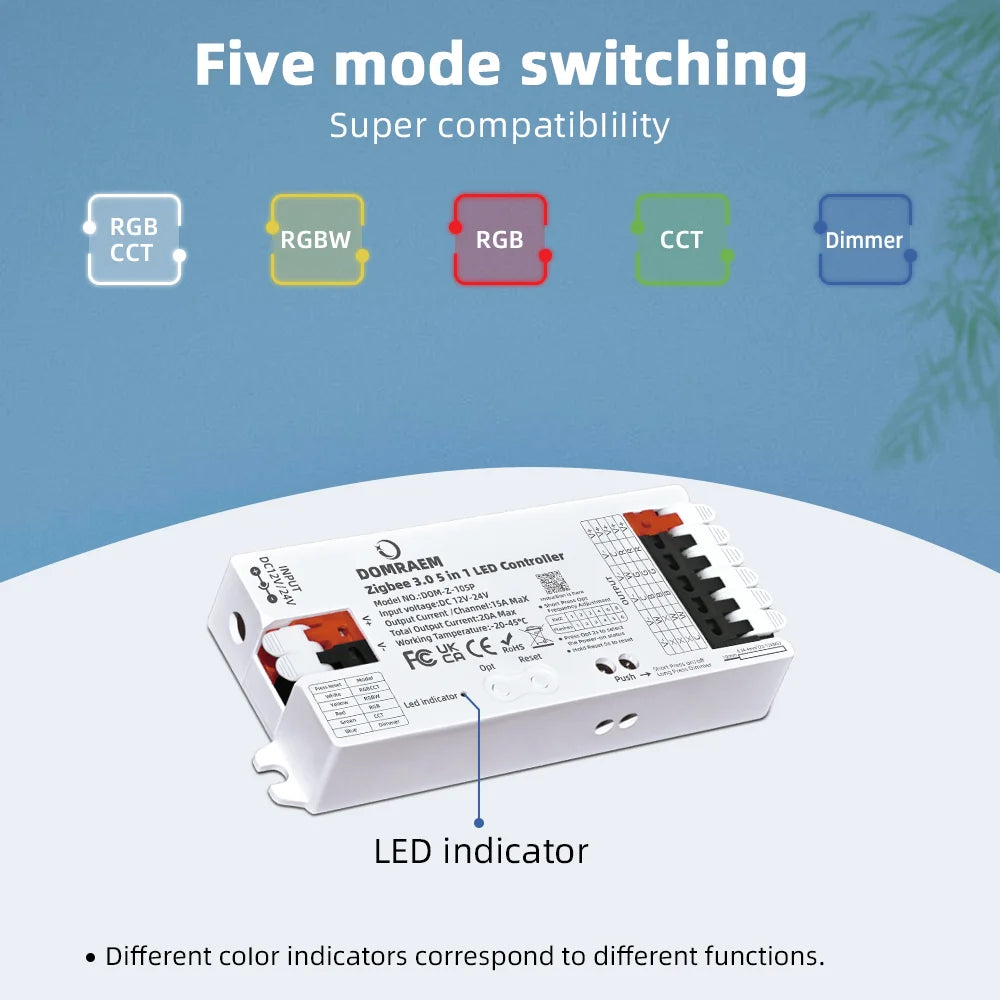

🎛️Quick Mode Switching (Not applicable to DOM-Z-101P)

• Press RESET to cycle modes:
  ① White light: RGBCCT
  ② Yellow light: RGBW
  ③ Red light: RGB
  ④ Green light: CCT
  ⑤ Blue light: DIMMER

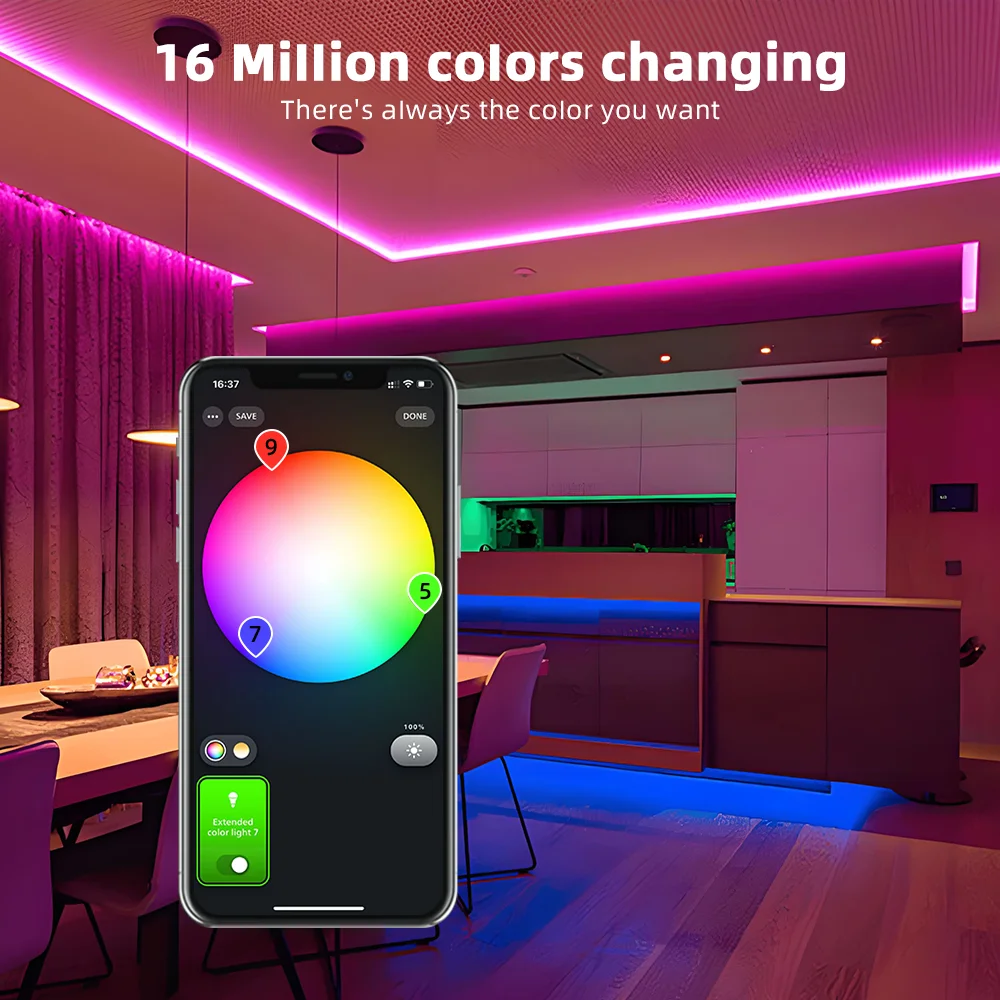

📱Smart APP Control

• Millions of colors with custom effects

• Precise 0-100% dimming

• Preset scenes: Reading/Theater/Party/Sleep, etc.




  🌟Alexa Voice Control🌟
  This Zigbee 3.0 controllerpairs directly withAmazon Echo Plus (1st/2nd Gen), Echo (4th Gen), Echo Studio, Echo Show (2nd Gen) and other Zigbee 3.0-enabled speakers for voice control (on/off/color/brightness).

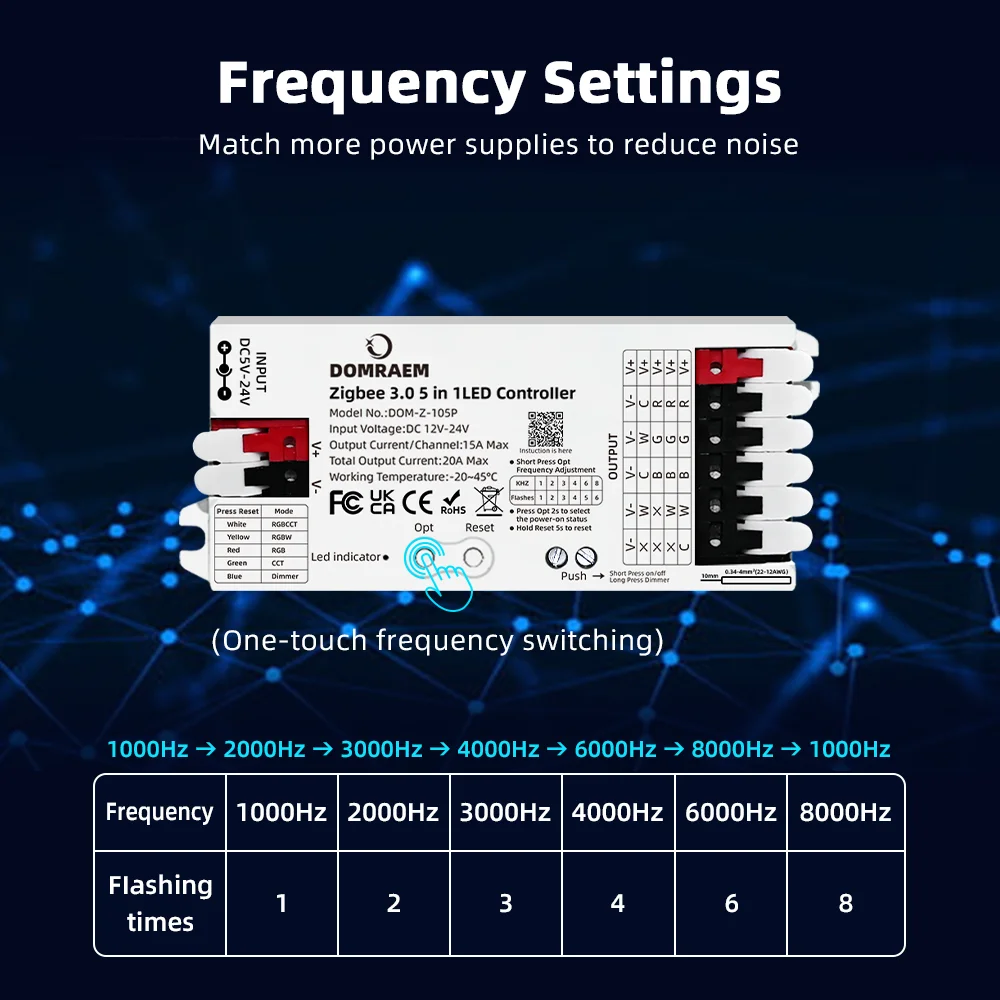

🔊PWM Frequency Adjustment

• Default 1000Hz flicker-free dimming

• Press OPT to switch frequencies (for power compatibility)

• Eliminates low-frequency noise

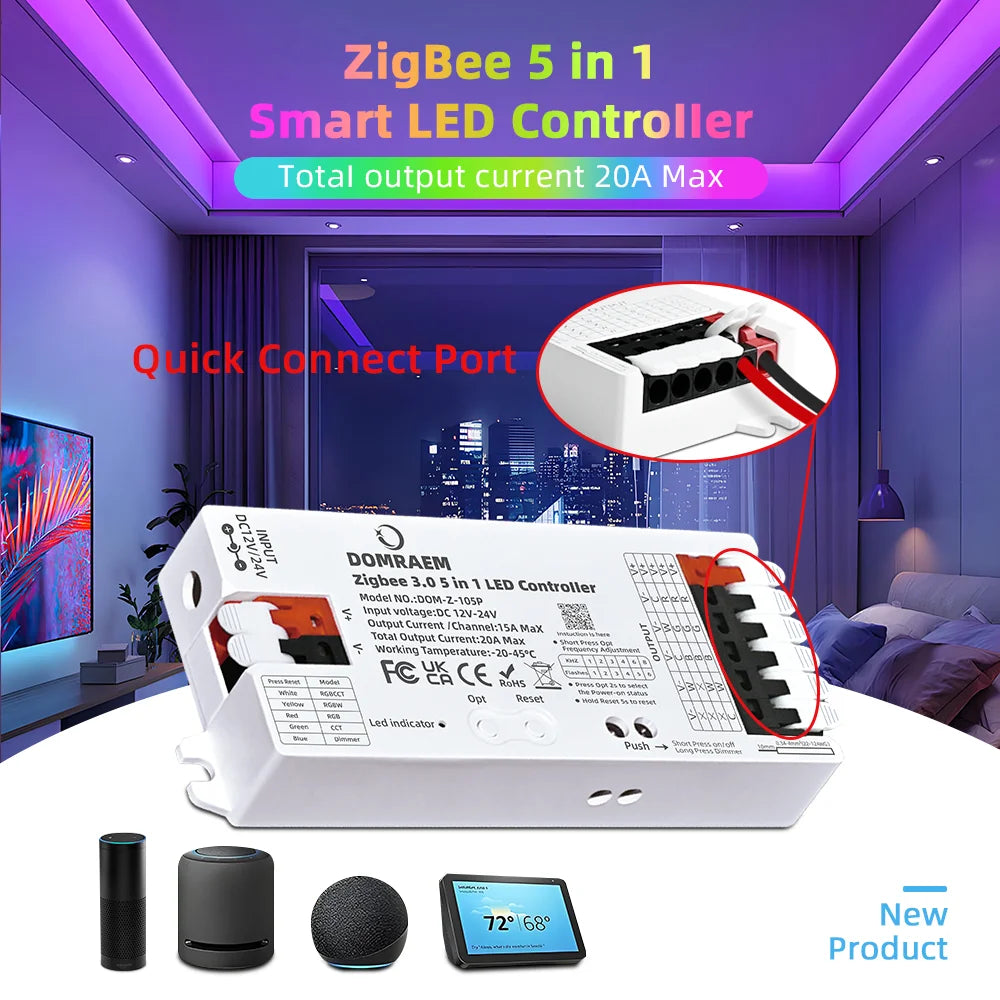

🔘User-Friendly Buttons

• PUSH button:

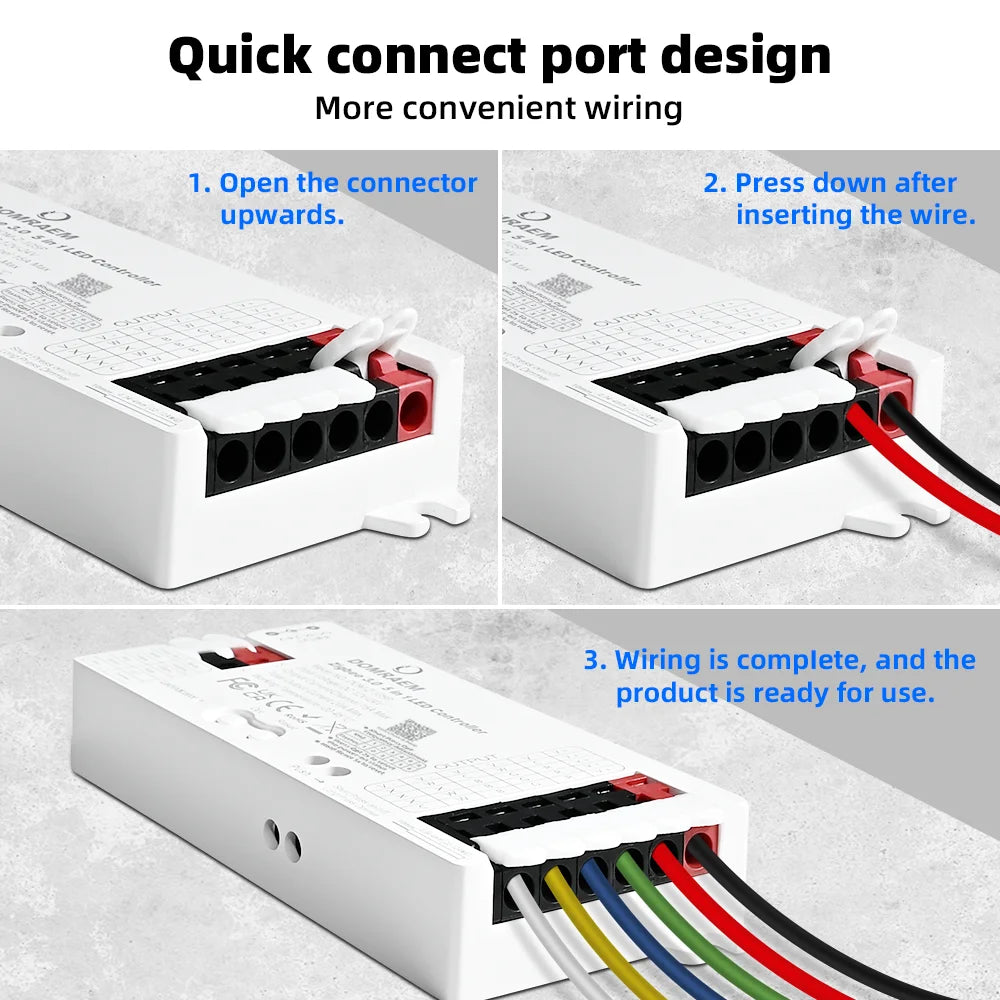

  ✓ Screwless terminals for easy wiring
  ✓ Short press: On/Off
  ✓ Long press: Smooth brightness adjustment

• Power-off memory function

📟RF Remote Control

• Compatible with Miboxer FUT089/FUT092 remotes

• 9 professional effects: Gradient/Strobe/Breathing, etc.

• Works without gateway

⚠️Safety Notice

• Use 12-24V power adapters only

• Do not exceed 20A total current

• Recommend 10% power margin

✨Key Advantages:
🔹 High-current output 🔹 Multi-protocol support
🔹 Pro-grade dimming 🔹 Multiple control options
